[YuriNK]

@Enter_Reality

Got it, and if you manage to get the arms stretching completely solved, well, this plugin is 100% complete

Side note: I send a playable demo ( using VMK of course ) to my customer for testing, and he consistently have some weird feet twitching and feet with a wrong angle…and at first I thought it was due to the bad trackers tracking or something obstructing the tracking cameras, but those issues are kind of consistent, meaning that after the twitching is gone the feet behaviour is ok, but from time to time they go mad, and the twitching is kind of similar every time…so did you experience something like that?

I never experienced it. VIdeo could help.
One assumption: is it possible that your customer has bad room calibration in SteamVR and floor level is incorrect, so feet trackers in VR are too high or too low?

[YuriNK]

@GavinCrout1030

I agree, fix the arm stretching problem, and this plugin is good to go. I would go as far to say that it will shut down your competition

Ok. As I said, I’ll return home to my HTC Vive at this sunday and 'll get cracking on this.

@GavinCrout1030

But now I have to bite the bullet and purchase another tracker and strap. I’ll continue testing it with one tracker

It’s your choise. In many cases, one pelvis tracker is ok. I just personally prefer real captured spine.

@GavinCrout1030

https://www.youtube.com/watch?v=YKJJ…ature=youtu.be Ok here I’m showing the spine, see how it’s not flexible at all, it’s completely straight and I have the tracker pretty high. But this test is probably the best I’ve seen of Vive Mocap Kit

I’ll see if I could improve flexible spine from one tracker. I actually have one idea for that.

[YuriNK]

@anonymous_user_19069e4b

@ I think to avoid that issue mentioned above the grip button should work like the trigger, but preserving bones. So that in the end to preserve bones you just use the grip button without the trigger.

Yes, it makes sense.

[GavinCrout1030]

@anonymous_user_19069e4b

@GavinCrout1030 Hi Gavin. The problem you have with manual calibration is probably that you don’t use the grip button correctly, I’ve had the same issue. To move a controller/tracker and preserving its bone you need to hold the grip button down, then you use the trigger to move the controller/tracker and let go of the trigger when finished. Just after you have let go of the trigger you can let go of the grip button again.

@ I think to avoid that issue mentioned above the grip button should work like the trigger, but preserving bones. So that in the end to preserve bones you just use the grip button without the trigger.

Wow, thanks man! Good look

[GavinCrout1030]

Does anybody have a method for improving the flexible spine tracking atm? [USER=“2200”]Enter Reality[/USER] you managed to get flexible spine tracking? Feel like I’m missing something because my spine is completely straight

[YuriNK]

@GavinCrout1030

Does anybody have a method for improving the flexible spine tracking atm? [USER=“2200”]Enter Reality[/USER] you managed to get flexible spine tracking? Feel like I’m missing something because my spine is completely straight

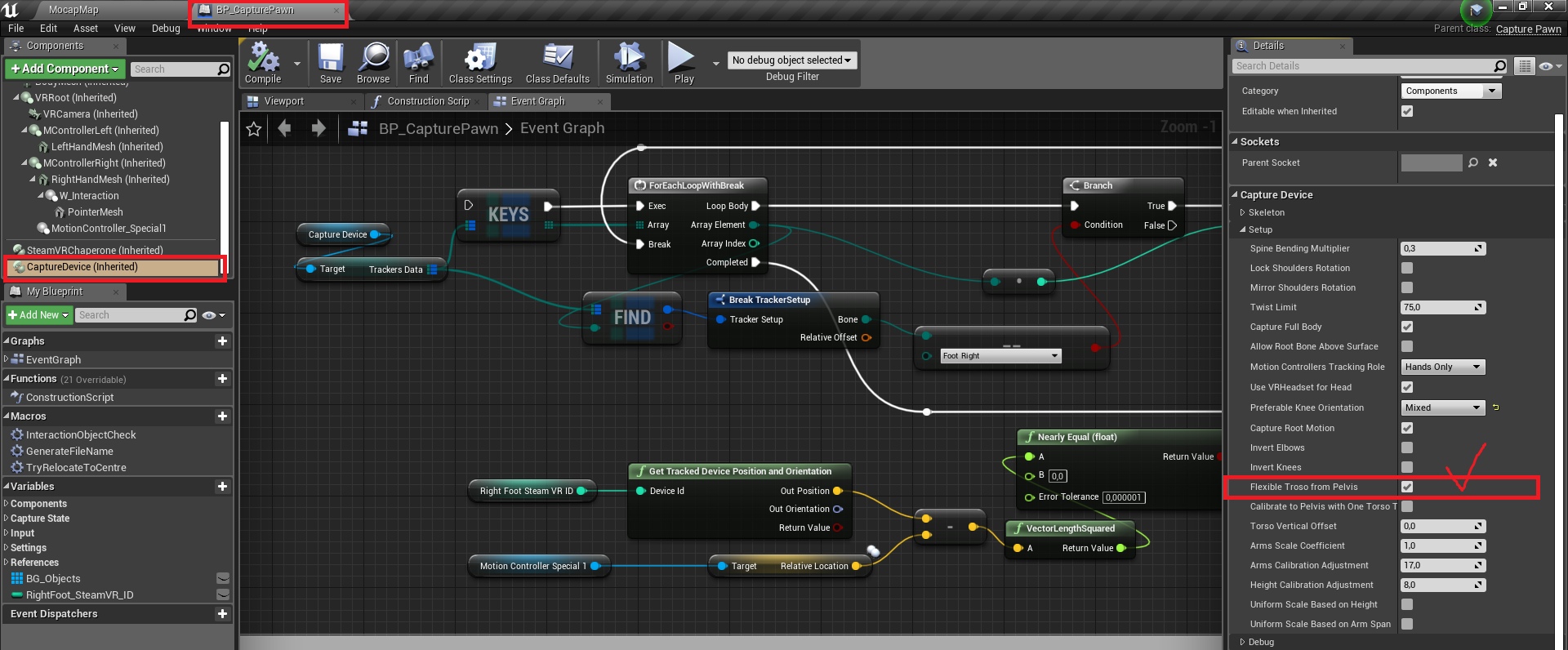

Make sure this flag https://pp.userapi.com/c831508/v831508950/1cb59c/2qllRgb8X6M.jpg ] is checked and spine tracker is binded to pelvis, not ribcage (you can see tracker’s role in manual calibration).

Also, 4.21 supports more then 3 trackers without my patch, so it makes sense to switch to this version. The plugin for 4.21 is in the Launcher already, and project for 4.21 is here: https://drive.google.com/open?id=18wWlxogitsq1Zu-P2J8GqL3uk83aZKdS

[GavinCrout1030]

Make sure this flag https://pp.userapi.com/c831508/v831508950/1cb59c/2qllRgb8X6M.jpg ] is checked and spine tracker is binded to pelvis, not ribcage (you can see tracker’s role in manual calibration).

Also, 4.21 supports more then 3 trackers without my patch, so it makes sense to switch to this version. The plugin for 4.21 is in the Launcher already, and project for 4.21 is here: https://drive.google.com/open?id=18wWlxogitsq1Zu-P2J8GqL3uk83aZKdS

I had that checked, so I feel like I’m doing something wrong. Should the tracker be on the side of my pelvis? Or the front or back?

Does the plugin for 4.21 have any other benefits besides the 3+ trackers? I’m guessing it’ll get rid of that glitch where it doesn’t recognize my wands sometimes, which forces me to restart my steamvr and ue4.

Also, I hate to give you more tasks, but do you plan on improving the clavicle solver?

[YuriNK]

@GavinCrout1030

Should the tracker be on the side of my pelvis? Or the front or back?

It doesn’t matter. It just should drive pelvis bone.

@GavinCrout1030

Does the plugin for 4.21 have any other benefits besides the 3+ trackers?

No. I just think that if you start with a new project, we could put off all possible problems related to setup and to focus on the plugin itself.

I’m guessing it’ll get rid of that glitch where it doesn’t recognize my wands sometimes, which forces me to restart my steamvr and ue4

Not sure about it, as I didn’t test 4.21 with VR yet.

@GavinCrout1030

do you plan on improving the clavicle solver?

No, unfortunately. But please write what you need, and I’ll add it to my backlog.

As for tasks for me, - don’t worry about it. It’s in my interest to make this plugin as good as possible.

[Enter_Reality]

@GavinCrout1030

Does anybody have a method for improving the flexible spine tracking atm? [USER=“2200”]Enter Reality[/USER] you managed to get flexible spine tracking? Feel like I’m missing something because my spine is completely straight

As a matter of fact, I requested the Spine IK a couple of months ago, and was super quick to do the integration, and if I remember correctly now is set by default.

My tracker setup is the following:

• Controllers for both hands
• Trackers on Elbows
• Tracker on Pelvis ( a bit below the belly button )
• Trackers on both feet

Since then I never got issues with the straight spine, and that was the issue I had before did the integration, so I’m not sure why you don’t have the IK spine

[GavinCrout1030]

It doesn’t matter. It just should drive pelvis bone.

No. I just think that if you start with a new project, we could put off all possible problems related to setup and to focus on the plugin itself.

Not sure about it, as I didn’t test 4.21 with VR yet.

No, unfortunately. But please write what you need, and I’ll add it to my backlog.

As for tasks for me, - don’t worry about it. It’s in my interest to make this plugin as good as possible.

Good point, I’ll start with a new project using 4.21.

I’m testing this plugin everyday so I’ll post some test on my Youtube channel on the problems that I’m having. Next test I’ll focus on the clavicles, they seem move correctly vertically a little, but not horizontally (if that makes sense)

[GavinCrout1030]

@Enter_Reality

As a matter of fact, I requested the Spine IK a couple of months ago, and was super quick to do the integration, and if I remember correctly now is set by default.

My tracker setup is the following:

• Controllers for both hands
• Trackers on Elbows
• Tracker on Pelvis ( a bit below the belly button )
• Trackers on both feet

Since then I never got issues with the straight spine, and that was the issue I had before did the integration, so I’m not sure why you don’t have the IK spine

Hmm, I have the exact same setup. I know your a very busy man, but if you get the time, can you post a 10sec clip showing Spine IK in action.

[GavinCrout1030]

It doesn’t give me the option to install the plugin to 4.21

[Enter_Reality]

@GavinCrout1030

Hmm, I have the exact same setup. I know your a very busy man, but if you get the time, can you post a 10sec clip showing Spine IK in action.

WIll do that on the weekend

[GavinCrout1030]

@Enter_Reality

WIll do that on the weekend

Thanks man!

[GavinCrout1030]

, this plugin can support up to 11 tracking points, right? Like what’s the max amount of trackers we can use

[YuriNK]

@GavinCrout1030

, this plugin can support up to 11 tracking points, right? Like what’s the max amount of trackers we can use

Feet - 2
Knees - 2
Spine - 2
Head - 1
Elbows - 2
Hands - 2
Clavicles - 2 - turned off temporary, because I can’t make good calibration algorithm for them.

[YuriNK]

@GavinCrout1030

It doesn’t give me the option to install the plugin to 4.21

You probably need to restart Launcher, or, may be, the plugin was automatically installed with 4.21.

[GavinCrout1030]

Hey , I found the problem with the flexible spine. The lower part of my spine goes the complete opposite way when I move it. I think you can solve this by reversing it, hopefully that’s easy

Edit: Actually, the whole spine is going the complete opposite way. That’s why it looks so weird.

[GavinCrout1030]

@GavinCrout1030

Hey , I found the problem with the flexible spine. The lower part of my spine goes the complete opposite way when I move it. I think you can solve this by reversing it, hopefully that’s easy

Edit: Actually, the whole spine is going the complete opposite way. That’s why it looks so weird.

Okay, so I got a little improvement by decreasing the “spine bend multiplier” to -0.3. But it looks like “spine 01 and 02” are being influenced, but “spine 03” isn’t being influenced at all.

As for the clavicles, I don’t have a problem with them when the arms go up and down *vertically (it still could be better), but when I move my arms left and right *horizontally, the clavicles aren’t being influenced at all. Or if they are being influenced, it’s probably extremely subtle

[YuriNK]

@GavinCrout1030

I just tested current version of the plugin and didn’t see these issues (non-fully stretched arms, flexible spine)
Can you make a video with these problems or show them in my video (https://www.youtube.com/watch?v=BIMXmJfmo3U - all settings are default, I slightly crouched to increase scaling)?
