From nice to aweful. Spline curve gets weird the longer the track/distance before is

Development Programming & Scripting Blueprint
1

SplineCurveBehavior
SplineCurveBehavior1367×858 63.1 KB

Goes from left to right.
The more I add before, the weirder the curve gets.
I didnt mess with tangents at all, I just added more points at a curve piece.

Any easy fix for this? If I dont have to touch tangents + spline type, I would prefer that.
If I have to, a second questions would come up: A spline point variable comes with a variety of data like input key, tangent, location. Can I get this data from an existing point? Couldnt find any function for this. If there isn’t a function for that I guess Id have to pull out every single information one by one

Thanks!

2

But that’s precisely what needs doing - remove the point in the corner, fix the tangents:

Also, arrive / leave tangents values can differ if needed and can be punched in manually:

image755×490 32.2 KB

3

thats a shame, but to be expected.

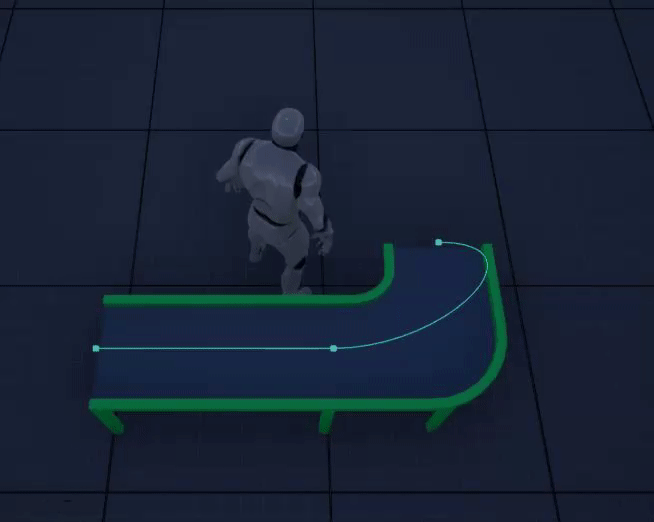

I think I figured the right arrive and leave tangent numbers for my curve but it only snaps correctly after I touch the rotation a tiny bit. See in gif.
I made sure the spline updates after changing the tangents. Do you know whats wrong here and how I could fix that?

Edit: Debugging tells me the last tangent gets not set. Need to figure out why.
Edit Edit: Seems like the last one is not having tangents at all… ? At least I cant see them when I click on the spline point plus debugging gives me vector 0 0 0
Edit Edit Edit: So for the first point I only set the leave tangent (else to 0) which worked fine. For the second one I only set the arrive tangent (else to 0) which didnt work at all even tho it was clearly fed with the right numbers. I now changed the second function from “Set Tangents at spline point” To “Sent Tangent at spline point” and this apparently works. Obviously I have no idea what Im doing…
